Applications
Features
|
＜SAMPLE UNIT＞ |
| Stock No. | Model | Belt Width(mm) | Dimensions(mm) | Magnet Dimensions(mm) | Motor Capacity(kW) | Weight (kg) |
Compliant Conveyor Belt Width(mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

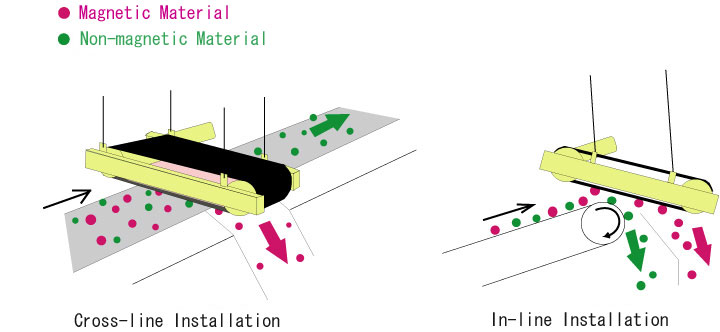

| W | L | H | P1 | P2 | L1 | W1 | Cross-line Installation | In-line Installation | |||||
| S950221 | KPSB30B | 300 | 620 | 1160 | 615 | 765 | 475 | 500 | 250 | 0.55 | 260 | 300 | 200 |
| S950222 | KPSB40B | 400 | 720 | 1310 | 615 | 915 | 575 | 650 | 350 | 0.55 | 350 | 400 | 300 |
| S950223 | KPSB50B | 500 | 820 | 1460 | 636 | 1065 | 675 | 800 | 450 | 0.75 | 450 | 500 | 400 |
| S950224 | KPSB60B | 600 | 920 | 1460 | 636 | 1065 | 775 | 800 | 550 | 0.75 | 520 | 600 | 500 |
| S950225 | KPSB75B | 750 | 1070 | 1610 | 636 | 1215 | 925 | 960 | 700 | 0.75 | 720 | 750 | 600 |
| S950226 | KPSB90B | 900 | 1220 | 1760 | 665 | 1365 | 1075 | 1110 | 850 | 1.5 | 1150 | 900 | 750 |
| S950227 | KPSB105B | 1050 | 1400 | 2070 | 700 | 1675 | 1225 | 1420 | 1000 | 2.2 | 1300 | 1200 | 900 |
