Magnetic Plate　KMP



KMP

Applications

Features

※It is necessary to remove iron pieces regularly.

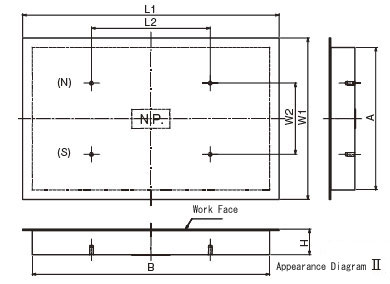

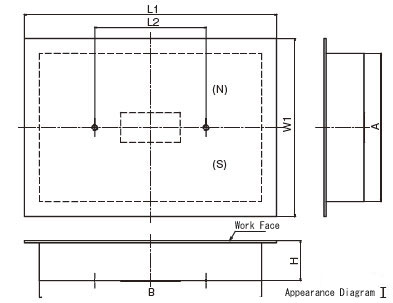

KMP-A図面KMP-A図面

KMP-A
Stock No. Model Dimensions (mm) Weight(kg) 外観図
A B H W1 L1 W2 L2
S950611 KMP15・15A 150 150 45 190 190 - - 6 Ⅰ
S950612 KMP15・30A 300 340 - - 12
S950613 KMP15・50A 500 540 - - 20
S950614 KMP20・20A 200 200 54 240 240 - - 12
S950615 KMP20・30A 300 340 - 150 18
S950616 KMP20・50A 500 540 - 300 30
S950617 KMP20・100A 1000 1040 - 600 60
S950618 KMP30・30A 300 300 54 340 340 - 200 35
S950619 KMP30・50A 500 540 150 250 60 Ⅱ
S950620 KMP30・60A 600 640 200 500 70
S950621 KMP30・100A 1000 1040 200 600 115
S950622 KMP40・50A 400 500 60 440 540 300 300 63

KMP-B図面

KMP-B
Stock No. Model Dimensions (mm) Weight(kg)
A B H W L W1 W2 W3 ℓ1 ℓ2
S950631 KMP15・15B 150 150 47 190 190 52 13 20 124 13 6
S950632 KMP15・30B 300 340 250 25 13
S950633 KMP15・50B 500 540 454 23 21
S950634 KMP20・20B 200 200 56 240 240 65 15 40 150 25 13
S950635 KMP20・30B 300 340 250 19
S950636 KMP20・50B 500 540 450 32
S950637 KMP20・100B 1000 1040 950 64
S950638 KMP30・30B 300 300 340 340 100 25 50 250 37
S950639 KMP30・50B 500 540 450 64
S950640 KMP30・60B 600 640 550 75
S950641 KMP30・100B 1000 1040 950 120

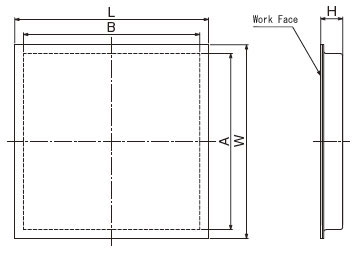

KMP-S図面

KMP-S
Stock No. Model Dimensions (mm) Weight(kg)
A B W L H
S950601 KMP10・10S 105 105 125 125 23.7 1.5
S950602 KMP15・15S 150 150 170 170 25.0 2.5
S950603 KMP15・30S 300 320 5.0
S950604 KMP20・20S 200 200 220 220 4.5
S950605 KMP20・30S 300 320 6.5
S950606 KMP30・30S 300 320 10.0
