Hand Magnet KHC/KHD/KHF



KSH

Applications

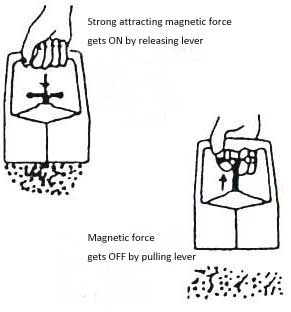

Features(KHC)

Features(KHD,KHD-2,KHF-1013、KMK-40)

KHC図面
KHD図面 KHF



Stock No. Model Dimension(mm) Max.
Holding Power
Note Weight(kg)
A B H
S942103 KHC 63 32 90 300N(30kgf) Without ON-OFF operation 0.7
S942104 KHD 112 112 178

-

With ON-OFF operation 1.5
S942105 KHF-1013 95 38 706 1.5
S942106 KHD-2 112 112 600 3.0



Magnetic Cleaner KMK-40



KMK

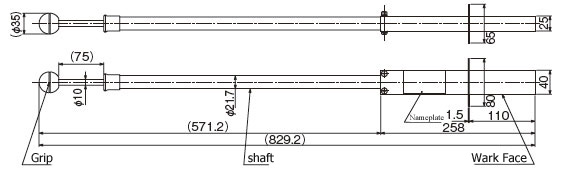

KMK図面

Stock No. Model Weight
(kg)
ON-OFF
Changeover
S942207 KMK-40 1.2 Yes
By pulling the grip from a to b, magnetic substances such as steel cans and cutting chips are released.
