Hishiko operates Magnet Applied Equipment division (formerly known as Fuji Jikoh Co. Ltd.)&Special Welding Consumables division.
Applications
Features
◎ Magnetic Base specific

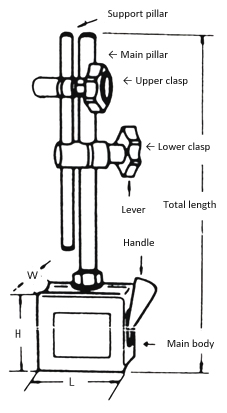

| Stock No. | Model | Body(mm) | Main Pole(mm) | Sub Pole(mm) | Max. Holding Power |
Weight (kg) |
Note | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | L | H | Diameter | L | Diameter | L | |||||
| S930101 | KBA-10 | 50 | 58.5 | 55 | 12 | 176 | 10 | 165 | 800N (80kgf) | 1.5 | normal |
| S930103 | KBA-10F | 162 | KBA-10 with micromotion adjustment. | ||||||||
| S930221 | KBA-10VX | - | - | - | - | 2 | Arm is flexible with a pole joint. | ||||
| S930201 | KBC-3 | 70 | 70 | 80 | 20 | 307.5 | 14 | 200 | 1KN (100kgf) | 4.2 | High-precision with Ø20 principle posts large main body. |
| S930202 | KBC-4 | 62 | 107 | 50 | 397.5 | 1.2KN (120kgf) | 4.5 | High-precision with Ø20 principle posts large main body. | |||
