Hi-power Coolant Separator　CSN



csn

Applications

Features

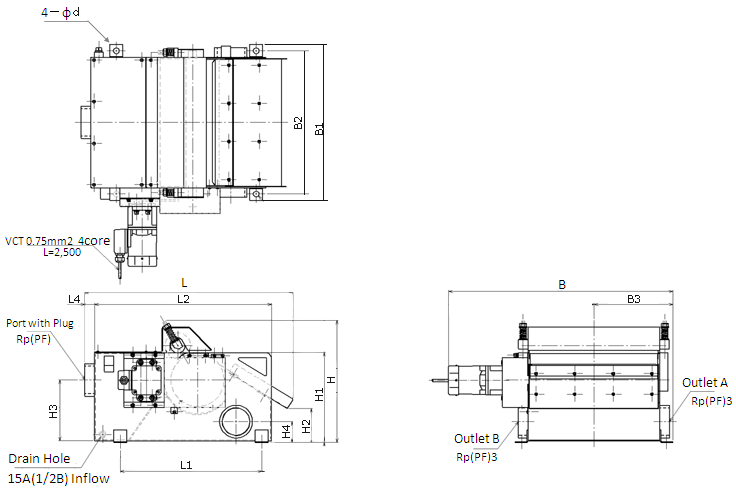

CSN図面



Stock No Model Processing
Capacity
(ℓ/min)		 Motor Dimensions(mm) Magnet
for
Drum		 Coolant Weight
(kg)
B B1 B2 B3 L L1 L2 L3 L4 H H1 H2 H3 H4 d
S953164 CSN-4 40 3phase
200Ｖ
50/60Hz
4P
25W		 361 240 210 117.5 453 260 390 50 20 290 226 48 165 55 11 Neodymium
Magnet		 Water-soluble
Coolant		 About 25
S953168 CSN-8 80 421 300 270 147.5 65 About 35
S953160 CSN-12 120 3phase
200Ｖ/220Ｖ
50/60Hz
4P
60W		 597 390 350 195 641 440 550 110 25 380 275 105 190 18 About 50
S953161 CSN-18 180 697 490 450 245 646 30 About 60
S953162 CSN-24 240 797 590 550 295 About 85
Accessory: Sludge box, Nipple for inflow port, Plug for outflow port, Street elbow for outflow port and 4 core cable.
