Coolant Separator CS



cs

Applications

Features

図面


図面


図面



(mm)
Stock No Model Processing
Capacity
(ℓ/min)
Motor
(W)
Dimensions (mm) Inlet Outlet
A
Outlet
B
Outlet
C
Weight
(kg)
B B1 B2 B3 L L1 L2 L3 L4 H H1 H2 H3 H4
S953152 CS-2 20 3phase
200V
50/60Hz
25W

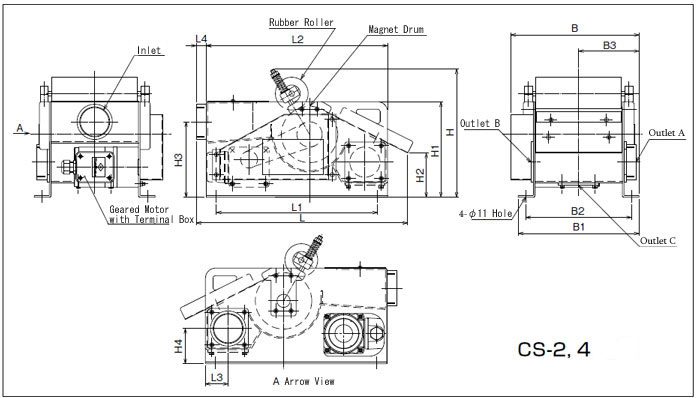

215 200 170 100 420 320 360 45 20 255 190 90 150 70 1 1/2'
Nipple
1 1/2'
Street
Elbow
Cap Cap 15
S953153 CS-4 40 255 240 210 120 2'
Nipple
2'
Street
Elbow
18

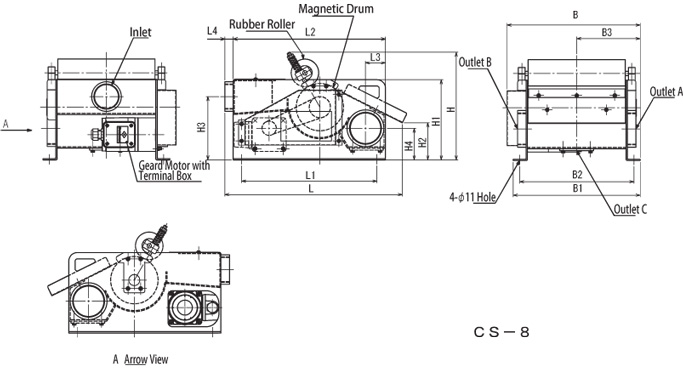

S953154 CS-8 80 315 300 270 150 47 75 2 1/2'
Street
Elbow
2 1/2'
Plug
23
S953155 CS-12 120 3phase
200V
50/60Hz
60W

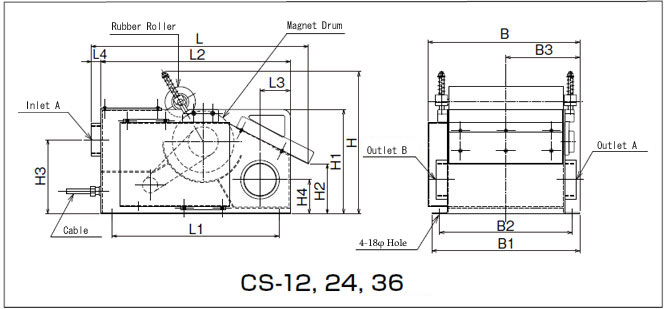

400 390 350 195 575 440 500 80 30 375 275 130 195 90 2 1/2'
Nipple
3'
Street
Elbow
3'
Plug
47
S953156 CS-24 240 600 590 550 295 580 3'
Nipple
70
S953157 CS-36 360 3phase
200V
50/60Hz
90W
800 790 750 395 75 100 4'
Nipple
4'
Street
Elbow
4'
Plug
96
Accessory: Sludge box



Dimensions of Rubber Roller 図面
Stock
No
Type Dimensions(mm)
D L d L1
S9941007 CS - 2 ø65 130 ø10 23
S9941008 CS - 4 170
S9941009 CS - 8 230
S9941010 CS-12 ø80 300 ø15 12
S9941011 CS-24 500
S9941012 CS-36 700
