Hishiko operates Magnet Applied Equipment division (formerly known as Fuji Jikoh Co. Ltd.)&Special Welding Consumables division.
Applications
Features
| Stock No. | Model | *Lifting Capability (kgf) |
*Lifting Capability for Round Bar (kgf) |
Diameter of Round Bar(ømm) |

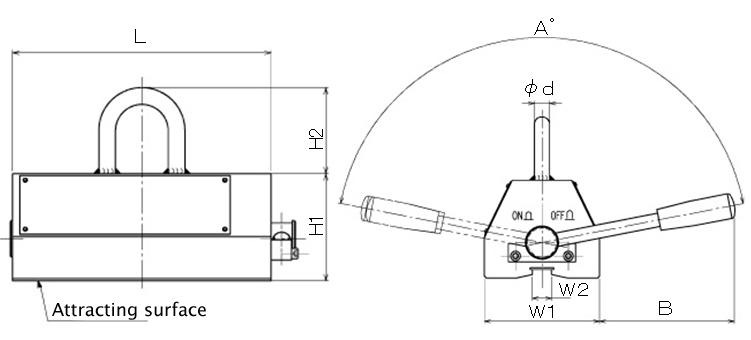

Dimensions of Magnet(mm) |
Angle | Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H1 | H2 | L | W1 | W2 | φd | Ａ° | B | ||||||
| S961342 | PLN 150 | 150 | 65 | 40～100 | 70 | 50 | 93 | 60 | (11) | 10 | 150° | (98) | 2.6 |
| S961343 | PLN 300 | 300 | 150 | 60～200 | 99 | 81 | 152 | 100 | 20 | 16 | 155° | (150) | 10 |
| S961344 | PLN 600 | 600 | 300 | 65～270 | 99 | 81 | 246 | 120 | 20 | 16 | 155° | (140) | 20 |
| S961345 | PLN1200 | 1200 | 600 | 100～300 | 125 | 110 | 305 | 146 | 25 | 20 | 170° | (170) | 40 |
（▽▽▽）、t is over 50mm、Air gap 0mm
