Round Electromagnetic Lifting Magnet System　KLR

KLR

Applications

KLR is suitable for transporting small steel plates by single application. Also it can transport large steel plates by combinational application using beam.

Features

※The control unit is optional. Hishiko will manufacture to suit your specifications. We also sells control unit separately.

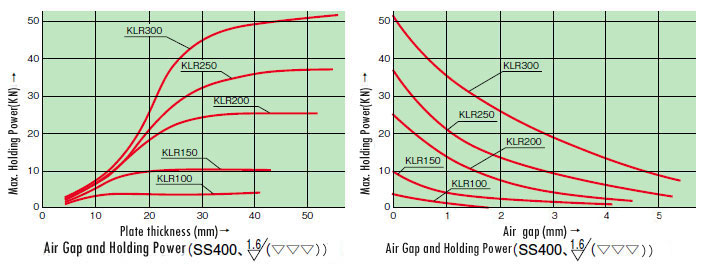

グラフ

Stock No.	Model	Dimensions(mm)			Wattage(W)	Recommended Rectifier	Lifting Capacity	Weight(kg)
Stock No.	Model	D	ｈ	d	Wattage(W)	Recommended Rectifier	Lifting Capacity	Weight(kg)
S960101	KLR100	φ100	80	φ30 （M12Eyebolt）	56	CLE-SL	2KN （200kgf）	3.5
S960102	KLR150	φ152	90	φ40 （M20Eyebolt）	125		5KN （500kgf）	10.5
S960103	KLR200	φ217	110	φ60 （M30Eyebolt）	209		12KN （1200kgf）	21
S960104	KLR250	φ257	130	φ70 （M36Eyebolt）	300		15KN （1500kgf）	38
S960105	KLR300	φ307	140	φ80 （M42Eyebolt）	322		25KN （2500kgf）	60

Lifting capacity is 1/2 of the maximum holding power. Duty cycle of KLR is 50%ED, 10 minutes per cycle.

Applications

Used for power unit of KLR and KLF type electromagnetic lifting magnet.
Power unit with uninterruptible power source for KLR and KLF type electromagnetic lifting magnet.This device prevent the load from dropping during power failure.

※Hishiko will design to suit your requests. We also sells control unit separately. Please feel free to contact us.

There is LCD inside the control unit. This panel shows system condition in real time.
Operator can drive and set up various setting through the LCD. This has touch panel capability.
- Operation of excitation or inverse excitation.
  （Operation through external input (I/F) is prohibited during operation through LCD）
- Changing configuration of parameters which is necessary for excitation and inverse excitation
- Changing some functions and setting indications.
In the event of power failure or abnormality, overlap window is opened and display the problem.
