Precaution for Selecting
Select specific holders taking lifting conditions into consideration.
※Please refer "Selection of Lifting Magnet"
Applications
Features
※We will select the most suitable rectifier or controller depending upon the status of use.
Please feel free to contact us.
| Stock No. | Model | Dimensions(mm) | Dimensions for Mount | Voltage DC(V) | Current (A) |
Max. Holding Power | Weight (kg) |

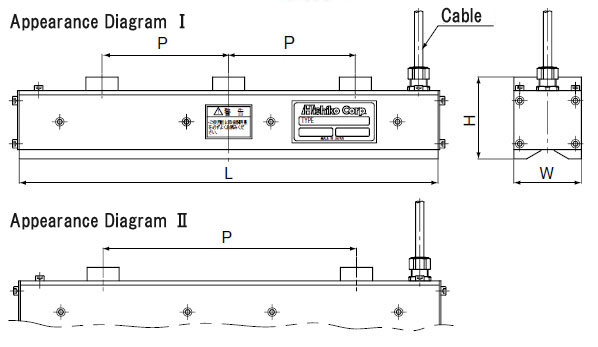

Appearance Diagram | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | L | H | P(mm) | Tapped Hole | |||||||
| S960431 | KLFD2.25 | 19.6 | 250 | 76 | 150 | 2-M6 Depth9 |
90 | 0.35 | 0.4KN(40kgf) | 2 | Ⅱ |
| S960432 | KLFD2.50 | 500 | 3-M6 Depth9 |
0.7 | 0.8KN(80kgf) | 4 | Ⅰ | ||||
| S960433 | KLFD4.25 | 40 | 252 | 73 | 2-M6 Depth9 |
0.71 | 2KN(200kgf) | 4 | Ⅱ | ||
| S960434 | KLFD4.50 | 502 | 3-M6 Depth9 |
1.4 | 4KN(400kgf) | 8 | Ⅰ | ||||
| S960435 | KLFD6.25 | 60 | 246 | 98 | 2-M8 Depth16 |
1.1 | 3KN(300kgf) | 7 | Ⅱ | ||
| S960436 | KLFD6.50 | 500 | 97 | 3-M8 Depth16 |
2.2 | 6KN(600kgf) | 14 | Ⅰ | |||
| S960437 | KLFD8.25 | 80 | 250 | 2-M10 Depth16 |
1.3 | 5KN(500kgf) | 11 | Ⅱ | |||
| S960438 | KLFD8.50 | 500 | 3-M10 Depth16 |
2.6 | 10KN(1000kgf) | 22 | Ⅰ | ||||
（▽▽▽））
