１．Usage Conditions
・Installation Environment — 1. Location: Indoors 2. Ambient Temp.: -10 to 40°C
・Surface Condition of the Workpiece— Flat (no protrusions, holes, etc.)
※Use the whole lifting surface of the holder to handle the workpiece.
・Usage Rating —15%ED:Please avoid to use in short cycle.
２．Precaution for Selecting
Select specific holders taking lifting conditions into consideration.
※Please refer "Selection of Lifting Magnet"
Applications
Features
※The rectifier is sold separately.
Recommended rectifier is KS24EP and KS90EP series.
| Stock No | Model | Dimensions(mm) | Tapped Hole | Stopper Hole | Voltage DC(V) | Current (A) |
Max. Holding Power | Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| φD | H | A | ||||||||

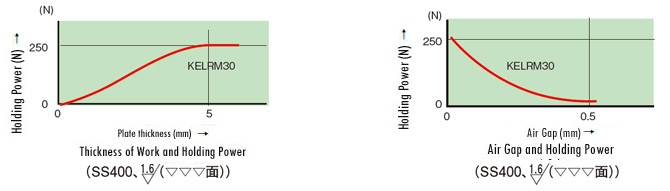

| S961202 | KELRM30 | 30 | 45 | 10 | M6 depth12 | 4depth3 | 24 | 0.9 | 220N (22kgf) | 0.22 |
（▽▽▽）)
Applications
Features
| Rectifier＼Holder | KELRM30 | KELRM40 | KELRM60 |
|---|---|---|---|
| KS24×10EP | 10 | 8 | 4 |
| KS90×10EP | 40 | 32 | 16 |
| Stock No | Model | Dimensions(mm) | Input | Output DC(V) |
Current(A) | Weight(kg) | ||
|---|---|---|---|---|---|---|---|---|
| Width | Height | Depth | ||||||
| S980151 | KS24×10EP | 230 | 100 | 155 | Single Phase AC100V |
24 | 10 | 4 |
| S980153 | KS90×10EP | 90 | 10 | 3 | ||||
