Table Type Demagnetizer KDA

KDA

Application

Removing residual magnetism from workpieces

Features

Easy to use

As the demagnetizing surface is flat, KDA can be installed in production line which is using belt conveyor.

◇Demagnetization Method◇
Move a workpiece above the demagnetizing surface slowly in the direction of A-B. Demagnetization ends when the workpiece is moved more than 20 cm away from the end face of the demagnetizer.

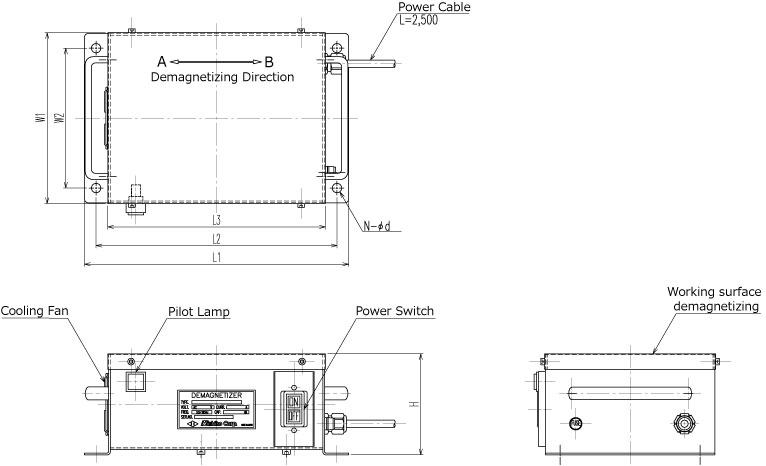

KDA図面

Specifications

Stock No.	Model	Dimensions(mm)							Input	Capacity (VA)	Time Rating	Effective Area	Weight (kg)
Stock No.	Model	L1	L2	L3	W1	W2	H	N-d	Input	Capacity (VA)	Time Rating	Effective Area	Weight (kg)
S970111	KDA18.14	220	200	180	140	-	85	2-ø9	AC100V 50/60Hz	120/100	Continuous	Ｌ110×Ｗ45	5
S970112	KDA20.18	248	230	200	180	-	85	2-ø9	AC100V 50/60Hz	300/250	Continuous Max.2h	Ｌ110×Ｗ95	8
S970113	KDA28.22	340	310	280	220	180	130	4-ø12	Single-phase AC200V 50/60Hz	580/460	Continuous	Ｌ160×Ｗ65	18
S970114	KDA28.30	340	310	280	300	260	130	4-ø12	Single-phase AC200V 50/60Hz	1020/800	Continuous	Ｌ160×Ｗ135	29
