Electromagnetic Underslung Separator　KSLF/KSLR



KSLR

Applications

Features

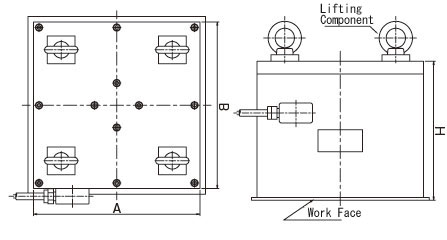

KSLF図面

KSLF
Stock No. Model Dimensions Distance from Conveyor(mm) Capacity(W) Recommended Rectifier Weight(kg)
A B H
S950401 KSLF30-30 300 300 250 80～120 350 CXE-SL 180
S950402 KSLF40-40 400 400 350 100～150 650 400
Note-1：To prevent magnetic induction please use non-magnetic substance such as SUS304, rubber lining and so on for a pulley, a roller and a chute for discharging iron piece which are located under electromagnet.
Note-2：Turnbuckle is convenient for adjusting distance between the electromagnet and conveyor belt.


KSLR図面

KSLR
Stock No. Model D
(mm)		 H
(mm)		 φｄ Conveyor Belt Width(mm) Distance from Conveyor(mm) Capacity(kW) Recommended Rectifier Weight(kg)
S950501 KSLR40 420 240 φ25 350 100～150 0.5 CXE-SL 150
S950502 KSLR50 520 280 φ30 450 120～180 0.8 280
S950503 KSLR60 620 330 550 150～210 1.3 KAS8-10 400
S950504 KSLR80 826 380 φ40 750 180～260 2.0 800
S950505 KSLR100 1026 430 900 220～320 3.2 KAS8-20 1400
S950506 KSLR120 1230 480 φ60 1050 280～400 5.0 KAS8-30 2000
S950507 KSLR150 1530 530 1300 350～500 8.0 KAS8-40 3400
Note-1：To prevent magnetic induction please use non-magnetic substance such as SUS304, rubber lining and so on for a pulley, a roller and a chute for discharging iron piece which are located under electromagnet.
Note-2：Turnbuckle is convenient for adjusting distance between the electromagnet and conveyor belt.

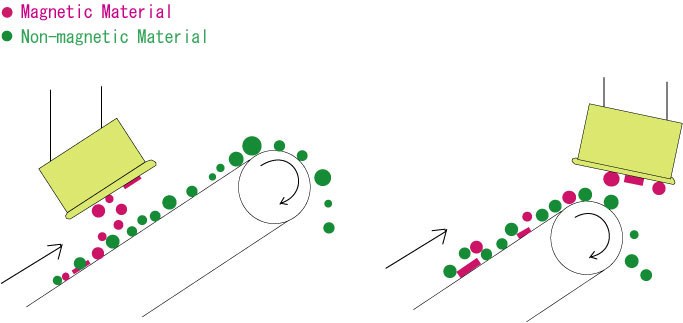

設置
