Permanent Magnetic Underslung Separator　
KMP-C/KMP-D/KMP-E

KMP-C

Applications

KMP is a strong magnet for permanent magnetic underslung separator.

KMP is designed to show effective attractive force mainly. For instance D type can install to a belt separator.

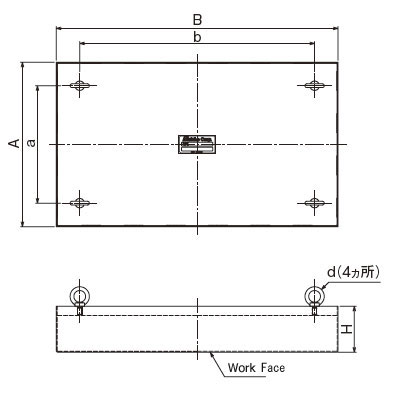

KMP-C図面

KMP-C/D

Stock No.	Model	Dimensions (mm)						Weight (kg)
Stock No.	Model	A	B	H	ａ	ｂ	ｄ	Weight (kg)
S950651	KMP25・25C	250	250	70	150	150	M8 Eyebolt	24
S950652	KMP25・30C		300			200		29
S950653	KMP25・40C		400			300		39
S950654	KMP25・50C		500			400		48
S950655	KMP25・60C		600			500		58
S950656	KMP35・30D	350	300	95	250	200		57
S950657	KMP35・40D		400			300		76
S950658	KMP35・50D		500			400		92
S950659	KMP35・60D		600			500		115

KMP-E

Stock No.	Model	Dimensions(mm)						Weight (kg)
Stock No.	Model	A	B	H	ａ	ｂ	ｄ	Weight (kg)
S950671	KMP30・30E	300	300	180	200	200	M10 Eyebolt	60
S950672	KMP30・40E		400			300		85
S950673	KMP30・50E		500			400		110
S950674	KMP40・40E	400	400	185	250	250		120
S950675	KMP40・60E		600			450	M16 Eyebolt	185
S950676	KMP40・80E		800			650	M16 Eyebolt	255
