１．Usage Conditions
・Installation Environment — 1. Location: Indoors 2. Ambient Temp.: -10 to 40°C
・Surface Condition of the Workpiece— Flat (no protrusions, holes, etc.)
※Use the whole lifting surface of the holder to handle the workpiece.
・Usage Rating — Continuous (100%ED)
２．Precaution for Selecting
Select specific holders taking lifting conditions into consideration.
※Please refer "Selection of Lifting Magnet"
Applications
Features
※The rectifier is sold separately.
Recommended rectifier is KS24 and KS80 series.

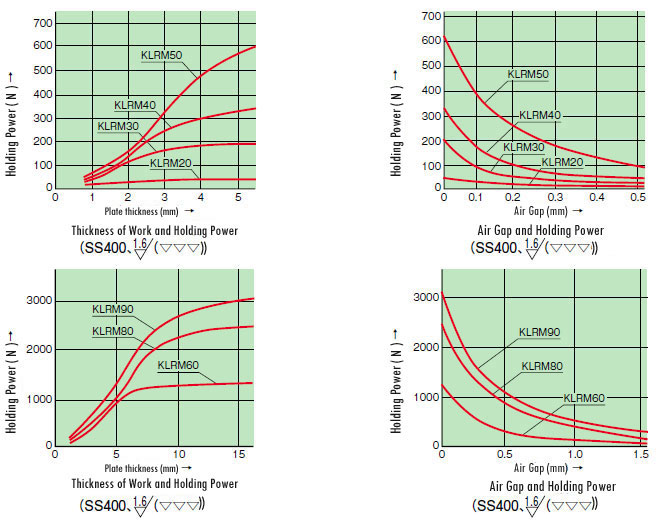

| Stock No. | Model | Dimensions (mm) | Tapped Hole | Stopper Hole | Voltage （Ｖ） |
Current （Ａ） |
Max. Holding Power | Weight(kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| øD | H | A | ||||||||
| S961102 | KLRM20 | 20 | 28 | なし | M4 depth8 | - | 24 | 0.06 | 28N (2.8kgf) | 0.07 |
| S961103 | KLRM30 | 30 | 40 | 10 | M6 depth12 | 4depth3 | 0.17 | 180N (18kgf) | 0.2 | |
| S961104 | KLRM40 | 40 | 15 | 0.24 | 300N (30kgf) | 0.35 | ||||
| S961105 | KLRM50 | 50 | 50 | 18 | M8 depth15 | 5depth4 | 90 | 0.11 | 600N (60kgf) | 0.7 |
| S961106 | KLRM60 | 60 | 60 | 20 | M10 depth20 | 0.2 | 1200N (120kgf) | 1.2 | ||
| S961107 | KLRM80 | 80 | 6depth6 | 0.29 | 2400N (240kgf) | 2.1 | ||||
| S961108 | KLRM90 | 90 | M12 depth20 | 0.35 | 3300N (330kgf) | 2.7 | ||||
（▽▽▽))
Applications
Features
※The rectifier is sold separately.
Recommended rectifier is KS24 and KS80 series.

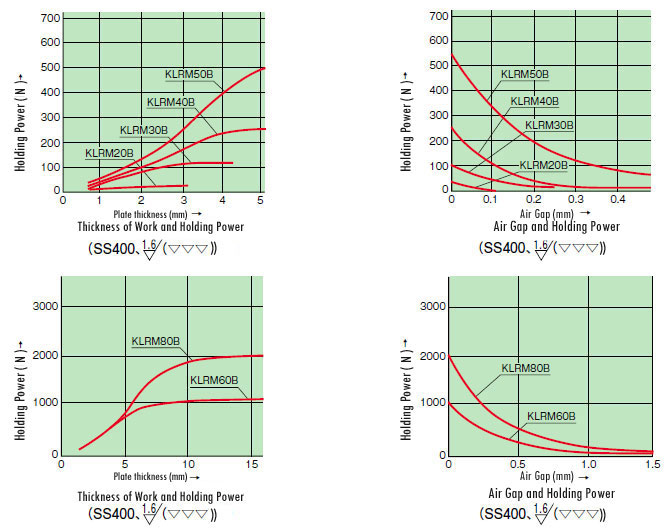

| Stock No. | Model | Dimensions (mm) | Tapped Hole | Stopper Hole | Voltage（Ｖ） | Current（Ａ） | Max. Holding Power | Weight(kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| øD | H | A | ||||||||
| S961112 | KLRM20B | 20 | 20 | なし | M4 depth5 | - | 24 | 0.07 | 10N (1kgf) | 0.04 |
| S961113 | KLRM30B | 30 | 10 | M6 depth10 | 3depth2 | 0.08 | 100N (10kgf) | 0.08 | ||
| S961114 | KLRM40B | 40 | 15 | 0.09 | 220N (22kgf) | 0.15 | ||||
| S961115 | KLRM50B | 50 | 25 | 18 | M8 depth12 | 90 | 0.1 | 500N (50kgf) | 0.3 | |
| S961116 | KLRM60B | 60 | 30 | 20 | M10 depth16 | 4depth3 | 0.21 | 1000N (100kgf) | 0.5 | |
| S961117 | KLRM80B | 80 | 0.32 | 2000N (200kgf) | 0.9 | |||||
（▽▽▽))
Applications
Features
※The rectifier is sold separately.Recommended rectifier is KS24 series.

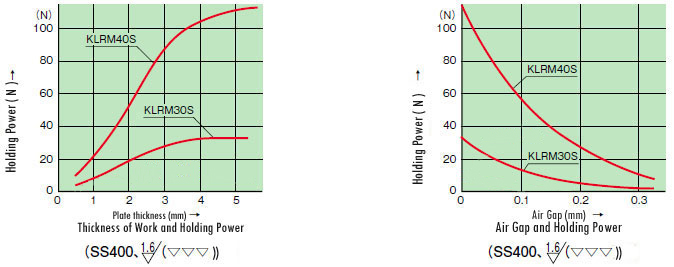

| Stock No. | Model | Dimensions(mm) | Tapped Hole | Stopper Hole | Pushing Force (kg) |
Voltage DC(V) | Current(A) | Max. Holding Power | Weight(kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| φD | H | A | |||||||||
| S961123 | KLRM30S | 30 | 25 | 10 | M6-depth7 | 4depth3 | 0～1.0 | 24 | 0.09 | 30N (3kgf) | 0.13 |
| S961124 | KLRM40S | 40 | 15 | 0.16 | 110N (11kgf) | 0.20 | |||||
（▽▽▽))
Application
Feature
| Stock No. | Model | Dimensions (mm) | Input | Output | Current | Neutralization Duration | Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|
| Width | Height | Depth | |||||||
| S981248 | HCC024.5AE | 130 | 225 | 180 | AC100/AC200V 50/60Hz Single Phase |
DC1 ～ 24V | 5A Max. | About 0.5 Sec. (Adjustable) |
3.5 |
Applications
Features
| Stock No. | Model | Applicable Product | Dimensions (mm) | Input | Output DC(V) |
Current (A) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|
| Width | Height | Depth | |||||||
| S980122 | KS24×3B | KLRM・KLRM-B・KLRM-S | 200 | 100 | 155 | Single Phase AC100V | 24 | 3 | 3.5 |
| S980102 | KS80×3 | KLRM・KLRM-B | 150 | 60 | 100 | 90 | 1 | ||
