Cam Type Permanent Lifting Magnet KPLC



KPLC

Applications





Features





Note

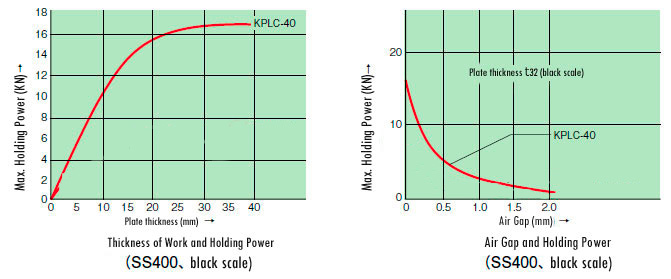

グラフ 図面



Stock No. Model Dimensions(mm) Hoisting Attachment Lifting Capacity Weight(kg)
W1 L1 H W2 L2
S961002 KPLC-40 266 285 210 176 210 130 BC Shackle
呼び18
4KN(400kgf) 25
Note: Lifting capacity is obtained by dividing the maximum holding power for mill scale surface steel plate whose thickness is more than 50mm by 3.Also workpiece should not be drooping or sagging for achieve these lifting capacity.
