Hishiko operates Magnet Applied Equipment division (formerly known as Fuji Jikoh Co. Ltd.)&Special Welding Consumables division.
Application
Features
◇Demagnetization Method◇
Switch on the demagnetizer and then feed workpiece at 5 to 10 m/min from front side.
Demagnetization finishes when the work is moved more than 2m away from the end of the demagnetizer.
| Stock No. | Model | Window Dimensions | Dimensions (mm) | Input | Capacity (kVA) |
Time Rating |
Weight (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

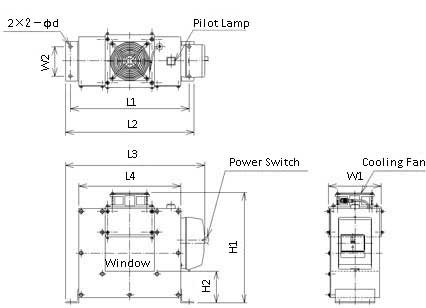

| Width | Height | L1 | L2 | L3 | L4 | W1 | W2 | H1 | H2 | d | ||||||
| S970220 | KDB15.10A | 150 | 100 | 360 | 390 | 422 | 310 | 160 | 90 | (335) | 95 | 10 | Single-phase AC200V 50/60Hz | 1.1/0.93 | Continuous | 21 |
| S970221 | KDB22.15A | 220 | 150 | 480 | 520 | 542 | 420 | 260 | 190 | (425) | 115 | 12 | 3.8/3.2 | 60 | ||
| S970222 | KDB40.30A | 400 | 300 | 660 | 700 | (745) | 600 | 260 | 190 | (574) | 115 | 12 | 10/8.4 | 100 | ||
◆We will design equipment which meets the size and shape of workpiece. ◆
Aperture Type with belt conveyor
sample
Continuously demagnetize several tens of thousands of extremely small parts in a plastic box by passing belt conveyor.
sample
Not demagnetizing workpiece having demagnetizer fixed and transporting belt conveyor and roller conveyor
but the demagnetizer main unit is moved.
Inverter is used for speed control and fine adjustment including slow down is made.
